In modern industry and home life,water pump,as the key equipment for conveying liquid and realizing liquid pressurization,is widely used in water conservancy,chemical industry,heating and ventilation,agricultural irrigation and household appliances.The core function of the water pump is to efficiently transfer the mechanical energy or other forms of energy of the prime mover to the liquid medium,so as to realize the reliable transportation of water,oil,acid-base solution,emulsion and liquid metal and other fluids.In order to meet the market demand,Yingshang Microelectronics introduced a water pump control scheme based on MM32SPIN040C main control chip,which showed outstanding performance,integration and applicability,and provided a stable and flexible microcontroller core for various water pump systems.
A high-performance

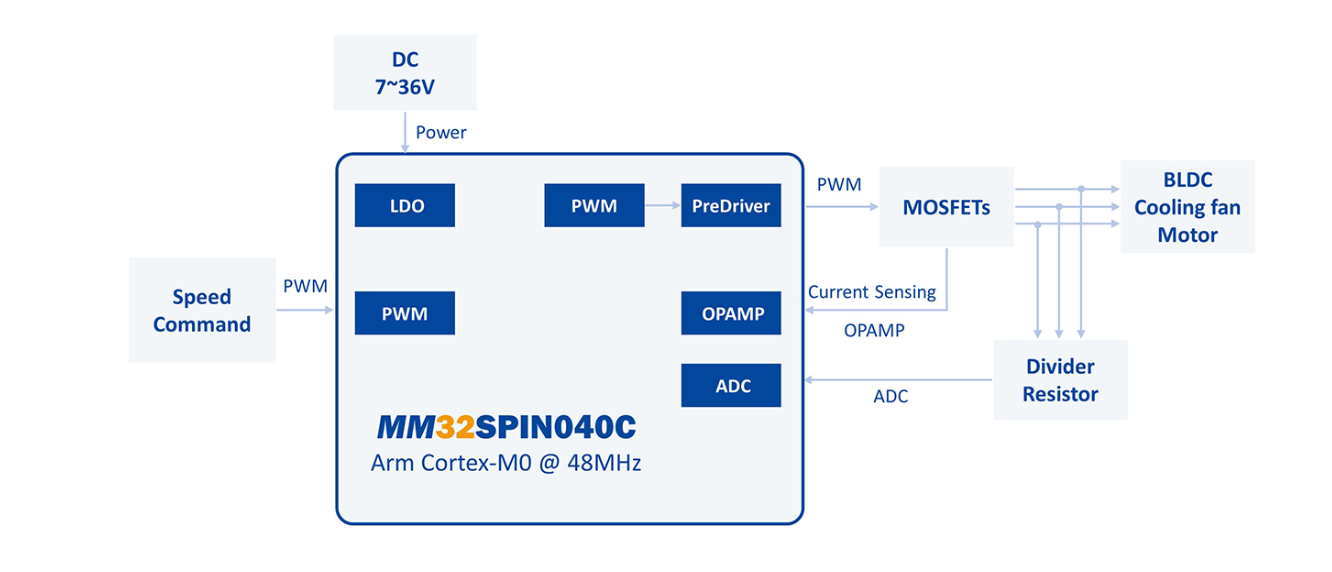

32-bit microcontroller with Arm®Cortex-M0 as the core is adopted in the water pump scheme with MM32SPIN040C as the main control chip,which works at the highest frequency of 48MHz and has excellent computing power and response speed.MCU microcontroller chip has built-in 16KB Flash memory and 2KB SRAM,which provides sufficient program and data space for complex water pump control logic and real-time data processing.The high-performance 12-bit ADC module integrated by MCU MM32SPIN040C has a sampling rate as high as 1 Msps,which can accurately collect key signals such as system current,voltage and temperature,and lay a foundation for monitoring and intelligent adjustment of water pump operation.
As for the special peripherals for motor control,the MCU MM32SPIN040C is equipped with an advanced PWM timer designed for motor control,which supports a variety of complementary outputs and dead-time insertion mechanisms,and can realize high-precision driving of actuators such as brushless motors.At the same time,the chip also has two built-in operational amplifiers,which can directly process weak signals such as motor phase current,reduce the number of external components,and optimize system cost and reliability.The working voltage of the MCU microcontroller MM32SPIN040C pre-drive stage can support up to 36V,which adapts to the wide-voltage working environment.The working temperature range is-40℃to 105℃,ensuring stable operation in harsh environment.
Yingshangwei recommended the water pump control scheme based on MCU MM32SPIN040C,because it is suitable for applications with high requirements on control accuracy and system reliability,such as three-phase permanent magnet brushless water pump motors,various power tools and industrial pump equipment.This scheme can realize high efficiency and low vibration motor drive,taking into account system power consumption and electromagnetic compatibility,and can provide strong technical support for the development of a new generation of intelligent water pump products.
